X-310 Web-Enabled Programmable Controller

$420.80$447.68

Quantity Price Breaks

10-24 save 4%,   25-49 save 8%,
50-99 save 12%, 100+ save 16%

More Information

Clear
SKU: N/A Category:

Description

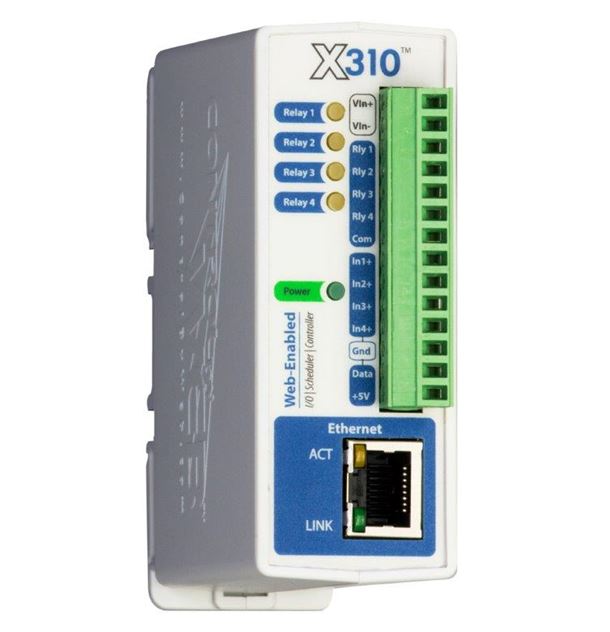

The X-310™ is a robust, full-featured, web-enabled, Ethernet I/O module with four 1-Amp relays, four optically-isolated digital inputs, support for up to four temperature or humidity sensors, and the ability to control up to 16 remote relays. It has non-volatile memory for logging, a real-time clock with support for NTP (time server) synchronization and an advanced full-calendar scheduler which can be used to turn on/off relays at preset times. Its web-based user interface makes it easy to set-up and use.

The X-310™ has many advanced features such as the ability to initiate a connection to remote servers, BASIC programming, SNMP, email alerts, peer-to-peer communications, internal monitoring, graphing, etc. The X-310™ is ideal for many applications including security, remote control, street sign controllers, shift bell controllers, and much more.

Like all of the ControlByWeb™ products, the X-310™ has a built-in web server so its relays and inputs can be controlled and monitored using a web browser (or use our CBW Mobile smartphone app). Additionally, temperature and humidity data can be graphed directly from any HTML5 compatible web browser.

Setup is simple; There is no app to download, no subscription to buy, no software required, and no programming necessary for setup or use.

The X-310™ is designed for accuracy and reliability, and is an innovative solution for a number of applications.

Models
X-310-I™ (with 3-12V DC Inputs)
Part # Relays Digital Inputs Temperature
Sensors
Remote Relays *Power Supply
X-310-I 4 4 1-4 16 9-28
VDC
X-310-24I™ (with 11-28V DC Inputs)
Part # Relays Digital Inputs Temperature
Sensors
Remote Relays *Power Supply
X-310-24I 4 4 1-4 16 9-28
VDC
X-310-E™ (with 3-12V DC Inputs)   Requires 802.3af POE power.
Part # Relays Digital Inputs Temperature
Sensors
Remote Relays *Power Supply
X-310-E 4 4 1-4 16 POE
or
5 VDC

* These devices are sold as components and do not include a power supply.

Features

  • Four electro-mechanical relays
    (shared common)
  • Four optically-isolated inputs (shared ground)
  • One-wire bus for up to 4 temperature and/or humidity sensors
  • Control up to 16 remote relays
  • Monitor and log power supply (voltage)
  • Highly configurable – almost any combination of input/relay control possible
  • Real-Time Clock with NTP server synchronization
  • Automatic daylight savings and leap year adjustment
  • Full calendar scheduling with 100 programmable events
  • No software required
  • Customizable web-based control page
  • BASIC script support for advanced flexibility
  • Configurable logging
  • Graphing (logged data)
  • Send email alerts based on user-defined conditions
  • Static or DHCP IP address configuration
  • XML, Modbus/TCP, and SNMP interface options
  • Field updatable
  • Removable 14-Terminal connector for easy installation
  • Rugged DIN-Rail/wall-mountable enclosure
